Angular 14 Firebase Storage: Upload/Retrieve/Download/Delete File example

In this tutorial, I will show you how to make Angular 14 with Firebase Storage Application: File Upload, Retrieve, Download, Delete using @angular/fire & AngularFireStorage. Files’ info will be stored in Firebase Realtime Database for Display/Delete operations.

Related Posts:
Angular 14 Firebase CRUD with Realtime Database
Angular 14 Firestore CRUD example
Angular 14 CRUD example with Rest API
Angular 14 Form Validation example (Reactive Forms)
Angular 14 File upload example with Rest API

Other versions:
Angular 10 File Upload with Firebase Storage
Angular 11 File Upload with Firebase Storage
Angular 12 File Upload with Firebase Storage
Angular 13 File Upload with Firebase Storage
Angular 15 File Upload with Firebase Storage
Angular 16 File Upload with Firebase Storage


Angular 14 Firebase Storage example

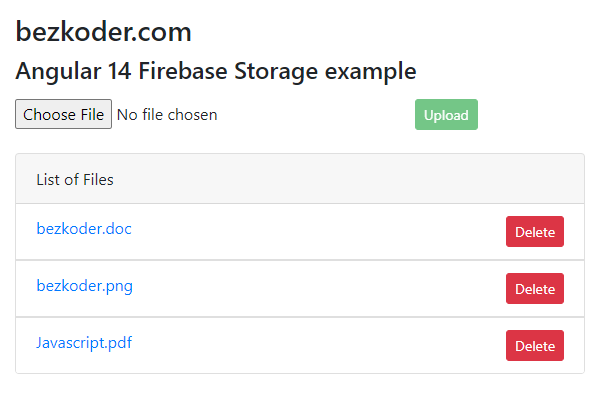

We’re gonna build an Angular 14 File Upload/Retrieve/Download/Delete with Firebase Storage example that helps us:

  • upload file to Firebase Storage
  • see the progress bar with percentage
  • save file metadata (name, url) to Firebase Realtime Database
  • display list of files
  • download url when clicking on the file name
  • delete any file in the list

angular-14-firebase-storage-file-upload-example

The result in Firebase Cloud Storage:

angular-14-firebase-storage-file-upload-example-cloud-files

And Realtime Database:

angular-14-firebase-storage-file-upload-data

If you want to upload Images with Preview:

angular-14-image-upload-preview-example

Please visit: Angular 14 Image Upload with Preview example

Data Flow

Following image shows the data flow with Angular 14 Client, Firebase Cloud Storage & Firebase Realtime Database:

angular-14-firebase-storage-file-upload-download-data-flow

– File upload:

  • store a file to Firebase Cloud Storage
  • retrieve metadata (name, url) of the file from Firebase Cloud Storage
  • save metadata (name, url) to Firebase Realtime Database

– Display/get/delete files: use the file metadata (name, url) which is stored in Realtime Database as reference to interact with Firebase Storage.

Define File Upload Class

The FileUpload class has four fields: key, name, url, file:

export class FileUpload {
  key: string;
  name: string;
  url: string;
  file: File;

  constructor(file: File) {
    this.file = file;
  }
}

File Upload, Download with Firebase Storage

We need to do 2 actions:

  • upload file to Firebase Storage.
  • save file’s info (name, url) to Firebase Database.
private basePath = '/uploads';

constructor(private db: AngularFireDatabase, private storage: AngularFireStorage) { }

pushFileToStorage(fileUpload: FileUpload): Observable<number> {
  const filePath = `${this.basePath}/${fileUpload.file.name}`;
  const storageRef = this.storage.ref(filePath);
  const uploadTask = this.storage.upload(filePath, fileUpload.file);

  uploadTask.snapshotChanges().pipe(
    finalize(() => {
      storageRef.getDownloadURL().subscribe(downloadURL => {
        fileUpload.url = downloadURL;
        fileUpload.name = fileUpload.file.name;
        this.saveFileData(fileUpload);
      });
    })
  ).subscribe();

  return uploadTask.percentageChanges();
}

We use upload() method that returns an AngularFireUploadTask which provides methods for controlling and monitoring the file upload.

AngularFireUploadTask has snapshotChanges() method for emitings the raw UploadTaskSnapshot when the file upload progresses.

To get the Download Url of the uploaded file, we use the RxJS finalize() method with getDownloadURL() which doesn’t rely on the task. So we can get notified when the download URL is available.

uploadTask.snapshotChanges().pipe(
    finalize(() => this.downloadURL = fileRef.getDownloadURL() )
 )
.subscribe();

Finally, we return the upload completion percentage as Observable<number> using AngularFireUploadTask‘s percentageChanges() method.

return uploadTask.percentageChanges();

Retrieve & Display List of Files from Firebase Storage

We get the list of files’info (name/url) from Firebase Realtime Database:

private basePath = '/uploads';

constructor(private db: AngularFireDatabase, ...) { }

getFiles(numberItems): AngularFireList<FileUpload> {
  return this.db.list(this.basePath, ref =>
    ref.limitToLast(numberItems));
}

With getFiles() method, we can get list of FileUploads including the key/id.

Now we’re gonna use snapshotChanges().pipe(map()) to store the key, it’s so important to use this key for removing individual item (FileUpload):

this.uploadService.getFileUploads(6).snapshotChanges().pipe(
  map(changes =>
    changes.map(c => ({ key: c.payload.key, ...c.payload.val() }))
  )
).subscribe(fileUploads => {
  this.fileUploads = fileUploads;
});

Delete File from Firebase Storage

There are 2 steps:

  • delete file’s info from Database.
  • delete file from Storage.
deleteFile(fileUpload: FileUpload): void {
  this.deleteFileDatabase(fileUpload.key)
    .then(() => {
      this.deleteFileStorage(fileUpload.name);
    })
    .catch(error => console.log(error));
}

private deleteFileDatabase(key: string): void {
  return this.db.list(this.basePath).remove(key);
}

private deleteFileStorage(name: string): void {
  const storageRef = this.storage.ref(this.basePath);
  storageRef.child(name).delete();
}

Practice

Technology

  • Angular 14
  • firebase 9
  • @angular/fire 7
  • rxjs 7

Setup the Firebase Project

Go to Firebase Console, login with your Google Account, then click on Add Project.

You will see the window like this:

angular-14-firebase-storage-create-firebase-project

Enter Project name, set Project Id and click on Continue.
Turn off Enable Google Analytics for this project, then click Create Project.

Now, browser turns into following view:

angular-14-firebase-storage-choose-web-app

If you don’t see it, just choose Project Overview.
Click on Web App, a window will be shown:

angular-14-firebase-storage-register-app

Set the nickname and choose Register App for next step.

angular-14-firebase-storage-add-firebase-sdk

Now you need to save the information above for later usage. Then click on Continue to Console.

Click on See all Build Features.

angular-14-firebase-storage-features

You can see a list of Firebase features -> Choose Storage.

angular-14-firebase-storage-feature

Then click on Get started:

angular-14-firebase-storage-get-started

A modal will display for setting up database:

1- Configure Secure Rules:

angular-14-firebase-storage-set-up-rules

2- Choose the database location:

angular-14-firebase-storage-set-up-location

In this tutorial, we don’t implement Authentication, so let’s choose test mode.

Or if you come from another situation, just open Tab Rules, then change allow read, write value to true.

Setup Angular 14 Project

Let’s open cmd and use Angular CLI to create a new Angular Project as following command:

ng new angular-14-firebase-storage
? Would you like to add Angular routing? No
? Which stylesheet format would you like to use? CSS

We also need to generate some Components and Services:

ng g s services/file-upload

ng g c components/upload-form
ng g c components/upload-list
ng g c components/upload-details

ng g class models/file-upload --type=model

Now you can see that our project directory structure looks like this.

Project Structure

angular-14-firebase-storage-project-structure

Let me explain it briefly.

environment.ts configures information to connect with Firebase Project.
models/file-upload.model.ts defines the model class.
services/file-upload.service.ts exports FileUploadService that uses @angular/fire‘s AngularFireStorage & AngularFireDatabase to interact with Firebase.

– There are 3 components that uses FileUploadService:

  • upload-form for uploading new file
  • upload-list displays list of files, parent of upload-details
  • upload-details shows file details

angular-14-firebase-storage-example-components

app.component contains the components above.
app.module.ts declares Angular components and imports necessary environment & modules.
index.html / styles.css is for importing Bootstrap.

Import Bootstrap

Open index.html, in <head> tag, import Bootstrap 4 to this project:

<!doctype html>
<html lang="en">
<head>
  ...
  <link rel="stylesheet" href="//unpkg.com/[email protected]/dist/css/bootstrap.min.css" />
</head>
<body>
  <app-root></app-root>
</body>
</html>

Another way is to run the command: npm install [email protected].
Then open src/styles.css and add following line:

@import "~bootstrap/dist/css/bootstrap.css";

Integrate Firebase into Angular 14 App

First run the command: npm install firebase @angular/fire.

Open src/environments/environment.ts, add Firebase configuration that we have saved when Popup window was shown:

export const environment = {
  production: false,
  firebase: {
    apiKey: 'xxx',
    authDomain: 'bezkoder-firebase.firebaseapp.com',
    databaseURL: 'https://bezkoder-firebase.firebaseio.com',
    projectId: 'bezkoder-firebase',
    storageBucket: 'bezkoder-firebase.appspot.com',
    messagingSenderId: 'xxx',
    appId: 'xxx'
  }
};

Open app.module.ts, import AngularFireModule, AngularFireStorageModule, AngularFireDatabaseModule and environment:

import { NgModule } from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';

import { AngularFireModule } from '@angular/fire/compat';
import { AngularFireDatabaseModule } from '@angular/fire/compat/database';
import { AngularFireStorageModule } from '@angular/fire/compat/storage';
import { environment } from '../environments/environment';

import { AppComponent } from './app.component';
import { UploadFormComponent } from './components/upload-form/upload-form.component';
import { UploadListComponent } from './components/upload-list/upload-list.component';
import { UploadDetailsComponent } from './components/upload-details/upload-details.component';

@NgModule({
  declarations: [
    AppComponent,
    UploadFormComponent,
    UploadListComponent,
    UploadDetailsComponent
  ],
  imports: [
    BrowserModule,
    AngularFireModule.initializeApp(environment.firebase),
    AngularFireDatabaseModule,
    AngularFireStorageModule
  ],
  providers: [],
  bootstrap: [AppComponent]
})
export class AppModule { }

Create File Upload Class

Let’s create FileUpload class with 4 fields: key, name, url, file.

models/file-upload.ts

export class FileUpload {
  key!: string;
  name!: string;
  url!: string;
  file: File;

  constructor(file: File) {
    this.file = file;
  }
}

Create File Upload Service

This service will use AngularFireStorage and AngularFireDatabase to interact with Firebase Storage and Realtime Database. It contains necessary functions for upload/get/delete file operations.

services/file-upload.service.ts

import { Injectable } from '@angular/core';
import { AngularFireDatabase, AngularFireList } from '@angular/fire/compat/database';
import { AngularFireStorage } from '@angular/fire/compat/storage';

import { Observable } from 'rxjs';
import { finalize } from 'rxjs/operators';
import { FileUpload } from '../models/file-upload.model';

@Injectable({
  providedIn: 'root'
})
export class FileUploadService {
  private basePath = '/uploads';

  constructor(private db: AngularFireDatabase, private storage: AngularFireStorage) { }

  pushFileToStorage(fileUpload: FileUpload): Observable<number | undefined> {
    const filePath = `${this.basePath}/${fileUpload.file.name}`;
    const storageRef = this.storage.ref(filePath);
    const uploadTask = this.storage.upload(filePath, fileUpload.file);

    uploadTask.snapshotChanges().pipe(
      finalize(() => {
        storageRef.getDownloadURL().subscribe(downloadURL => {
          fileUpload.url = downloadURL;
          fileUpload.name = fileUpload.file.name;
          this.saveFileData(fileUpload);
        });
      })
    ).subscribe();

    return uploadTask.percentageChanges();
  }

  private saveFileData(fileUpload: FileUpload): void {
    this.db.list(this.basePath).push(fileUpload);
  }

  getFiles(numberItems: number): AngularFireList<FileUpload> {
    return this.db.list(this.basePath, ref =>
      ref.limitToLast(numberItems));
  }

  deleteFile(fileUpload: FileUpload): void {
    this.deleteFileDatabase(fileUpload.key)
      .then(() => {
        this.deleteFileStorage(fileUpload.name);
      })
      .catch(error => console.log(error));
  }

  private deleteFileDatabase(key: string): Promise<void> {
    return this.db.list(this.basePath).remove(key);
  }

  private deleteFileStorage(name: string): void {
    const storageRef = this.storage.ref(this.basePath);
    storageRef.child(name).delete();
  }
}

Component for Upload Form

This component has a Form to upload new File. It calls FileUploadService.pushFileToStorage() method.

components/upload-form/upload-form.component.ts

import { Component, OnInit } from '@angular/core';
import { FileUploadService } from 'src/app/services/file-upload.service';
import { FileUpload } from 'src/app/models/file-upload.model';

@Component({
  selector: 'app-upload-form',
  templateUrl: './upload-form.component.html',
  styleUrls: ['./upload-form.component.css']
})
export class UploadFormComponent implements OnInit {
  selectedFiles?: FileList;
  currentFileUpload?: FileUpload;
  percentage = 0;

  constructor(private uploadService: FileUploadService) { }

  ngOnInit(): void {
  }

  selectFile(event: any): void {
    this.selectedFiles = event.target.files;
  }

  upload(): void {
    if (this.selectedFiles) {
      const file: File | null = this.selectedFiles.item(0);
      this.selectedFiles = undefined;

      if (file) {
        this.currentFileUpload = new FileUpload(file);
        this.uploadService.pushFileToStorage(this.currentFileUpload).subscribe(
          percentage => {
            this.percentage = Math.round(percentage ? percentage : 0);
          },
          error => {
            console.log(error);
          }
        );
      }
    }
  }
}

components/upload-form/upload-form.component.html

<div class="row">
  <div class="col-8">
    <label>
      <input
        type="file"
        class="text-nowrap text-truncate"
        (change)="selectFile($event)"
      />
    </label>
  </div>

  <div class="col-4">
    <button
      class="btn btn-success btn-sm"
      [disabled]="!selectedFiles"
      (click)="upload()"
    >
      Upload
    </button>
  </div>
</div>

<div *ngIf="currentFileUpload" class="progress mt-2">
  <div
    class="progress-bar progress-bar-info"
    role="progressbar"
    attr.aria-valuenow="{{ percentage }}"
    aria-valuemin="0"
    aria-valuemax="100"
    [ngStyle]="{ width: percentage + '%' }"
  >
    {{ percentage }}%
  </div>
</div>

Component for File Details

This component will export item details for the list later. It hsa file name with url and a Delete button.

components/upload-details/upload-details.component.ts

import { Component, OnInit, Input } from '@angular/core';
import { FileUploadService } from 'src/app/services/file-upload.service';
import { FileUpload } from 'src/app/models/file-upload.model';

@Component({
  selector: 'app-upload-details',
  templateUrl: './upload-details.component.html',
  styleUrls: ['./upload-details.component.css']
})
export class UploadDetailsComponent implements OnInit {
  @Input() fileUpload!: FileUpload;

  constructor(private uploadService: FileUploadService) { }

  ngOnInit(): void {
  }

  deleteFileUpload(fileUpload: FileUpload): void {
    this.uploadService.deleteFile(fileUpload);
  }
}

components/upload-details/upload-details.component.html

<a href="{{ fileUpload.url }}">{{ fileUpload.name }}</a>
<button (click)="deleteFileUpload(fileUpload)"
  class="btn btn-danger btn-sm" style="float: right">
  Delete
</button>

Component for Displaying List of Files

This component calls FileUploadService.getFiles() method.

components/upload-list/upload-list.component.ts

import { Component, OnInit } from '@angular/core';
import { FileUploadService } from 'src/app/services/file-upload.service';
import { map } from 'rxjs/operators';

@Component({
  selector: 'app-upload-list',
  templateUrl: './upload-list.component.html',
  styleUrls: ['./upload-list.component.css']
})
export class UploadListComponent implements OnInit {
  fileUploads?: any[];

  constructor(private uploadService: FileUploadService) { }

  ngOnInit(): void {
    this.uploadService.getFiles(6).snapshotChanges().pipe(
      map(changes =>
        // store the key
        changes.map(c => ({ key: c.payload.key, ...c.payload.val() }))
      )
    ).subscribe(fileUploads => {
      this.fileUploads = fileUploads;
    });
  }
}

In the HTML template, we embed upload-details component inside ngFor.

components/upload-list/upload-list.component.html

<div class="card">
  <div class="card-header">List of Files</div>
  <ul class="list-group list-group-flush">
    <li class="list-group-item"
        *ngFor="let file of fileUploads">
      <app-upload-details [fileUpload]="file"></app-upload-details>
    </li>
  </ul>
</div>

Embed Components in App Component

app.component.html

<div class="container" style="width:600px">
  <div>
    <h3>bezkoder.com</h3>
    <h4>{{ title }}</h4>
  </div>

  <div class="my-3">
    <app-upload-form></app-upload-form>
  </div>

  <div class="my-2">
    <app-upload-list></app-upload-list>
  </div>
</div>

Run & Check

You can run this Angular 14 Firebase Storage example with command: ng serve.
Open browser with url: http://localhost:4200/ and check the result.

Conclusion

Today we’ve built an Angular 14 Upload, Retrieve, Download, Delete File with Firebase Storage Application successfully using AngularFireStorage from @angular/fire library.

You can find how to make CRUD operations with Realtime DB or Firestore in the posts:
Angular 14 Firebase CRUD with Realtime Database
Angular 14 Firestore CRUD example

Or create Angular HTTP Client for working with Restful API in:
Angular 14 CRUD example with Rest API
Angular 14 File upload example with Rest API

Happy learning, see you again!

Further Reading

Fullstack CRUD Application:
Angular + Node Express + MySQL example
Angular + Node Express + PostgreSQL example
Angular + Node Express + MongoDB example
Angular + Spring Boot + H2 example
Angular + Spring Boot + MySQL example
Angular + Spring Boot + PostgreSQL example
Angular + Spring Boot + MongoDB example
Angular + Django example
Angular + Django + MySQL example
Angular + Django + PostgreSQL example
Angular + Django + MongoDB example

Source Code

You can find the complete source code for this tutorial on Github.
