MEAN Stack example: CRUD with Angular 13, Node, MongoDB

In this tutorial, I will show you how to make Angular 13 connect to MongoDB with Node.js Express. We’re gonna build a full-stack (MEAN stack) CRUD example in which, the back-end server uses Node.js + Express for REST APIs, front-end side is an Angular App with HttpClient, Router and Bootstrap.

Other versions:
MEAN Stack example with Angular 8
MEAN Stack example with Angular 10
MEAN Stack example with Angular 11
MEAN Stack example with Angular 12
MEAN Stack example with Angular 14
MEAN Stack example with Angular 15
MEAN Stack example with Angular 16

Run both projects in one place:
How to Integrate Angular with Node.js Restful Services

Security: MEAN stack Authentication & Authorization example

Serverless with Firebase:
Angular 13 Firebase CRUD Realtime DB
Angular 13 Firestore CRUD example


MEAN Stack example Overview

We will build a MEAN stack CRUD example: Angular 13 + Nodejs Express + MongoDB Tutorial Application in that:

  • Tutorial has id, title, description, published status.
  • User can create, retrieve, update, delete Tutorials.
  • There is a search box for finding Tutorials by title.

Here are screenshots of the example.

– Add an object:

mean-stack-crud-example-angular-13-mongodb-node-create-tutorial

– Retrieve all objects:

mean-stack-crud-example-tutorial

– Click on Edit button to update an object:

mean-stack-crud-example-angular-13-mongodb-node-retrieve-tutorial

On this Page, you can:

  • change status to Published using Publish button
  • delete the Tutorial using Delete button
  • update the Tutorial details with Update button

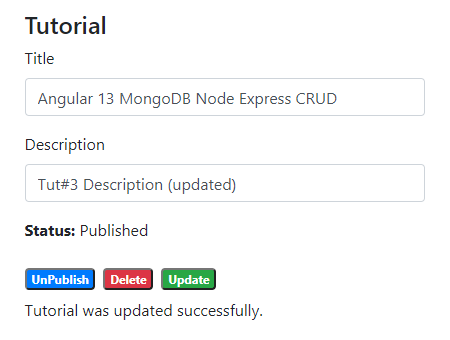

mean-stack-crud-example-angular-13-mongodb-node-update-tutorial

If you want to implement Form Validation, please visit:
Angular Form Validation example (Reactive Forms)

– Search Tutorials by title:

mean-stack-crud-example-angular-13-search-tutorial

– Check MongoDB Database:

mean-stack-crud-example-database-collection

MEAN stack example with Angular 13 Architecture

We’re gonna build the application with following architecture:

mean-stack-crud-example-architecture

– Node.js Express exports REST APIs & interacts with MongoDB Database using Mongoose ODM.
– Angular 13 Client sends HTTP Requests and retrieves HTTP Responses using HTTPClient, consume data on the components. Angular Router is used for navigating to pages.

Video

This is brief instruction and demo for Angular + Node.js Express application running with MongoDB database.

In the video, we use Angular 10, but the logic and UI are the same as this Angular version 13.

Node.js Express MongoDB Back-end

Overview

These are APIs that Node.js Express App will export:

Methods Urls Actions
GET api/tutorials get all Tutorials
GET api/tutorials/:id get Tutorial by id
POST api/tutorials add new Tutorial
PUT api/tutorials/:id update Tutorial by id
DELETE api/tutorials/:id remove Tutorial by id
DELETE api/tutorials remove all Tutorials
GET api/tutorials?title=[kw] find all Tutorials which title contains 'kw'

Project Structure

mean-stack-crud-example-server-project-structure

db.config.js exports configuring parameters for MongoDB connection & Mongoose.
Express web server in server.js where we configure CORS, initialize & run Express REST APIs.
– Next, we add configuration for MongoDB database in models/index.js, create Mongoose data model in models/tutorial.model.js.
– Tutorial controller in controllers.
– Routes for handling all CRUD operations (including custom finder) in tutorial.routes.js.

Create Node.js App

First, we create a folder:

$ mkdir nodejs-express-mongodb
$ cd nodejs-express-mongodb

Next, we initialize the Node.js App with a package.json file:

npm init

name: (nodejs-express-mongodb)
version: (1.0.0)
description: Node.js Restful CRUD API with Node.js, Express and MongoDB
entry point: (index.js) server.js
test command:
git repository:
keywords: nodejs, express, mongodb, rest, api
author: bezkoder
license: (ISC)

Is this ok? (yes) yes

We need to install necessary modules: express, mongoose and cors.
Run the command:

npm install express mongoose cors --save

Setup Express web server

In the root folder, let’s create a new server.js file:

const express = require("express");
const cors = require("cors");

const app = express();

var corsOptions = {
  origin: "http://localhost:8081"
};

app.use(cors(corsOptions));

// parse requests of content-type - application/json
app.use(express.json());

// parse requests of content-type - application/x-www-form-urlencoded
app.use(express.urlencoded({ extended: true }));

// simple route
app.get("/", (req, res) => {
  res.json({ message: "Welcome to bezkoder application." });
});

// set port, listen for requests
const PORT = process.env.PORT || 8080;
app.listen(PORT, () => {
  console.log(`Server is running on port ${PORT}.`);
});

What we do are:
– import express and cors modules:

  • Express is for building the Rest apis
  • cors provides Express middleware to enable CORS with various options.

– create an Express app, then add body-parser (json and urlencoded) and cors middlewares using app.use() method. Notice that we set origin: http://localhost:8081.
– define a GET route which is simple for test.
– listen on port 8080 for incoming requests.

Now let’s run the app with command: node server.js.
Open your browser with url http://localhost:8080/, you will see:

mean-stack-crud-example-setup-server

Yeah, the first step is done. We’re gonna work with Mongoose in the next section.

Configure MongoDB database & Mongoose

In the app folder, we create a separate config folder for configuration with db.config.js file like this:

module.exports = {
  url: "mongodb://localhost:27017/bezkoder_db"
};

Define Mongoose

We’re gonna define Mongoose model (tutorial.model.js) also in app/models folder in the next step.

Now create app/models/index.js with the following code:

const dbConfig = require("../config/db.config.js");

const mongoose = require("mongoose");
mongoose.Promise = global.Promise;

const db = {};
db.mongoose = mongoose;
db.url = dbConfig.url;
db.tutorials = require("./tutorial.model.js")(mongoose);

module.exports = db;

Don’t forget to call connect() method in server.js:

...
const app = express();
app.use(...);

const db = require("./app/models");
db.mongoose
  .connect(db.url, {
    useNewUrlParser: true,
    useUnifiedTopology: true
  })
  .then(() => {
    console.log("Connected to the database!");
  })
  .catch(err => {
    console.log("Cannot connect to the database!", err);
    process.exit();
  });

Define the Mongoose Model

In models folder, create tutorial.model.js file like this:

module.exports = mongoose => {
  const Tutorial = mongoose.model(
    "tutorial",
    mongoose.Schema(
      {
        title: String,
        description: String,
        published: Boolean
      },
      { timestamps: true }
    )
  );

  return Tutorial;
};

This Mongoose Model represents tutorials collection in MongoDB database. These fields will be generated automatically for each Tutorial document: _id, title, description, published, createdAt, updatedAt, __v.

{
  "_id": "5e363b135036a835ac1a7da8",
  "title": "Js Tut#",
  "description": "Description for Tut#",
  "published": true,
  "createdAt": "2021-07-02T02:59:31.198Z",
  "updatedAt": "2021-07-02T02:59:31.198Z",
  "__v": 0
}

If you use this app with a front-end that needs id field instead of _id, you have to override toJSON method that map default object to a custom object. So the Mongoose model could be modified as following code:

module.exports = mongoose => {
  var schema = mongoose.Schema(
    {
      title: String,
      description: String,
      published: Boolean
    },
    { timestamps: true }
  );

  schema.method("toJSON", function() {
    const { __v, _id, ...object } = this.toObject();
    object.id = _id;
    return object;
  });

  const Tutorial = mongoose.model("tutorial", schema);
  return Tutorial;
};

And the result will look like this-

{
  "title": "BezKoder Tut#",
  "description": "Description for Tut#",
  "published": true,
  "createdAt": "2021-12-02T02:59:31.198Z",
  "updatedAt": "2021-12-02T02:59:31.198Z",
  "id": "5e363b135036a835ac1a7da8"
}

After finishing the steps above, we don’t need to write CRUD functions, Mongoose Model supports all of them:

These functions will be used in our Controller.

Create the Controller

Inside app/controllers folder, let’s create tutorial.controller.js with these CRUD functions:

  • create
  • findAll
  • findOne
  • update
  • delete
  • deleteAll
  • findAllPublished
const db = require("../models");
const Tutorial = db.tutorials;

// Create and Save a new Tutorial
exports.create = (req, res) => {

};

// Retrieve all Tutorials from the database.
exports.findAll = (req, res) => {

};

// Find a single Tutorial with an id
exports.findOne = (req, res) => {

};

// Update a Tutorial by the id in the request
exports.update = (req, res) => {

};

// Delete a Tutorial with the specified id in the request
exports.delete = (req, res) => {

};

// Delete all Tutorials from the database.
exports.deleteAll = (req, res) => {

};

// Find all published Tutorials
exports.findAllPublished = (req, res) => {

};

You can continue with step by step to implement this Node.js Express App in the post:
Node.js, Express & MongoDb: Build a CRUD Rest Api example

Run the MEAN stack Server

Run our Node.js Express MongoDB application with command: node server.js.

Angular 13 Front-end

Overview

mean-stack-crud-example-angular-13-overview

– The App component is a container with router-outlet. It has navbar that links to routes paths via routerLink.

TutorialsList component gets and displays Tutorials.
TutorialDetails component has form for editing Tutorial’s details based on :id.
AddTutorial component has form for submission new Tutorial.

– These Components call TutorialService methods which use Angular HTTPClient to make HTTP requests and receive responses.

Technology

  • Angular 13
  • Angular HttpClient
  • Angular Router
  • Bootstrap 4

Project Structure

mean-stack-crud-example-angular-13-project-structure

tutorial.model.ts exports the main class model: Tutorial.
– There are 3 components: tutorials-list, tutorial-details, add-tutorial.
tutorial.service has methods for sending HTTP requests to the Apis.
app-routing.module.ts defines routes for each component.
app component contains router view and navigation bar.
app.module.ts declares Angular components and import necessary modules.

Setup Angular 13 Project

Let’s open cmd and use Angular CLI to create a new Angular Project as following command:

ng new Angular13Crud
? Would you like to add Angular routing? Yes
? Which stylesheet format would you like to use? CSS

We also need to generate some Components and Services:

ng g s services/tutorial

ng g c components/add-tutorial
ng g c components/tutorial-details
ng g c components/tutorials-list

ng g class models/tutorial --type=model

Set up App Module

Open app.module.ts and import FormsModule, HttpClientModule:

...
import { FormsModule } from '@angular/forms';
import { HttpClientModule } from '@angular/common/http';

@NgModule({
  declarations: [ ... ],
  imports: [
    ...
    FormsModule,
    HttpClientModule
  ],
  providers: [],
  bootstrap: [AppComponent]
})
export class AppModule { }

Define Routes for Angular AppRoutingModule

There are 3 main routes:
/tutorials for tutorials-list component
/tutorials/:id for tutorial-details component
/add for add-tutorial component

app-routing.module.ts

import { NgModule } from '@angular/core';
import { RouterModule, Routes } from '@angular/router';
import { TutorialsListComponent } from './components/tutorials-list/tutorials-list.component';
import { TutorialDetailsComponent } from './components/tutorial-details/tutorial-details.component';
import { AddTutorialComponent } from './components/add-tutorial/add-tutorial.component';

const routes: Routes = [
  { path: '', redirectTo: 'tutorials', pathMatch: 'full' },
  { path: 'tutorials', component: TutorialsListComponent },
  { path: 'tutorials/:id', component: TutorialDetailsComponent },
  { path: 'add', component: AddTutorialComponent }
];

@NgModule({
  imports: [RouterModule.forRoot(routes)],
  exports: [RouterModule]
})
export class AppRoutingModule { }

Define Model Class

Our main model class Tutorial will be exported in tutorial.model.ts with 4 fields:

  • id
  • title
  • description
  • published

models/tutorial.model.ts

export class Tutorial {
  id?: any;
  title?: string;
  description?: string;
  published?: boolean;
}

Create Data Service

This service will use Angular HttpClient to send HTTP requests.
You can see that its functions includes CRUD operations and finder method.

services/tutorial.service.ts

import { Injectable } from '@angular/core';
import { HttpClient } from '@angular/common/http';
import { Observable } from 'rxjs';
import { Tutorial } from '../models/tutorial.model';

const baseUrl = 'http://localhost:8080/api/tutorials';

@Injectable({
  providedIn: 'root'
})
export class TutorialService {

  constructor(private http: HttpClient) { }

  getAll(): Observable<Tutorial[]> {
    return this.http.get<Tutorial[]>(baseUrl);
  }

  get(id: any): Observable<Tutorial> {
    return this.http.get(`${baseUrl}/${id}`);
  }

  create(data: any): Observable<any> {
    return this.http.post(baseUrl, data);
  }

  update(id: any, data: any): Observable<any> {
    return this.http.put(`${baseUrl}/${id}`, data);
  }

  delete(id: any): Observable<any> {
    return this.http.delete(`${baseUrl}/${id}`);
  }

  deleteAll(): Observable<any> {
    return this.http.delete(baseUrl);
  }

  findByTitle(title: any): Observable<Tutorial[]> {
    return this.http.get<Tutorial[]>(`${baseUrl}?title=${title}`);
  }
}

Create Angular Components

As you’ve known before, there are 3 components corresponding to 3 routes defined in AppRoutingModule.

  • Add new Item Component
  • List of items Component
  • Item details Component

You can continue with step by step to implement this Angular App in the post:
Angular 13 CRUD Application example with Web API

Other versions:
Angular 8 CRUD example with Web API
Angular 10 CRUD example with Web API
Angular 11 CRUD example with Web API
Angular 12 CRUD example with Web API
Angular 14 CRUD example with Web API
Angular 15 CRUD example with Web API
Angular 16 CRUD example with Web API

Run the Angular 13 App

You can run this App with command: ng serve --port 8081.
If the process is successful, open Browser with Url: http://localhost:8081/ and check it.

Further Reading

Source Code

You can find Github source code for this tutorial at: Angular + Express Github

Conclusion

Now we have an overview of how to make Angular 13 connect to MongoDB with Node.js Express when building a MEAN stack CRUD example.

We also take a look at client-server architecture for REST API using Express & Mongoose ODM, as well as Angular 13 project structure for building a front-end app to make HTTP requests and consume responses.

Next tutorials show you more details about how to implement the system (with Github):
Back-end
– Front-end:

You will want to know how to run both projects in one place:
How to Integrate Angular with Node.js Restful Services

Or File Upload using Angular and Node.js

Pagination: Server side Pagination with Node.js and Angular

server-side-pagination-node-js-angular-ui-change-size

Security: MEAN stack Authentication & Authorization example

Or Serverless with Firebase:
Angular 13 Firebase CRUD Realtime DB
Angular 13 Firestore CRUD example

If you want to implement Form Validation, please visit:
Angular Form Validation example (Reactive Forms)

2 thoughts to “MEAN Stack example: CRUD with Angular 13, Node, MongoDB”

  1. What goes instead of the … for this step?

    Don’t forget to call connect() method in server.js:


    const app = express();
    app.use(…);

    const db = require(“./app/models”);
    db.mongoose
    .connect(db.url, {
    useNewUrlParser: true,
    useUnifiedTopology: true
    })
    .then(() => {
    console.log(“Connected to the database!”);
    })
    .catch(err => {
    console.log(“Cannot connect to the database!”, err);
    process.exit();
    });

Comments are closed to reduce spam. If you have any question, please send me an email.
