In this tutorial, we’re gonna build a Node.js Express Login and Registration Rest API example that supports JWT (JSONWebToken) and works with MongoDB database using Mongoose ODM. You’ll know:
- Appropriate Flow for User Login and Registration with JWT Authentication
- Node.js Express Architecture with CORS, Authentication & Authorization middlewares & Sequelize
- How to configure Express routes to work with JWT
- How to define Data Models and association for Authentication and Authorization
- Way to use Mongoose ODM to interact with MongoDB Database
Related Posts:
– Node.js & MongoDB: JWT Refresh Token example
– MERN stack Authentication example
– MEAN stack Authentication with Angular 8 example
– MEAN stack Authentication with Angular 10 example
– MEAN stack Authentication with Angular 11 example
– MEAN stack Authentication with Angular 12 example
– Node.js, Express & MongoDb: Build a CRUD Rest Api example
– MongoDB One-to-Many Relationship tutorial with Mongoose examples
– MongoDB Many-to-Many Relationship with Mongoose examples
Deployment: Docker Compose: Node.js Express and MongoDB example
Contents
- Overview
- Flow for Login and Registration
- Node.js Express Login with MongoDB Architecture
- Technology
- Project Structure
- Create Node.js Login with MongoDB App
- Setup Express web server
- Configure MongoDB database
- Define the Mongoose Model
- Initialize Mongoose
- Configure Auth Key
- Create Middleware functions
- Create Controllers
- Define Routes
- Run & Test with Results
- Conclusion
- Further Reading
- Source Code
Overview
We will build a Node.js Express and MongoDB Login example in that:
- User can signup new account, or login with username & password.
- By role (admin, moderator, user), the User has access to protected resources or not
These are APIs that we need to provide:
Methods | Urls | Actions |
---|---|---|
POST | /api/auth/signup | signup new account |
POST | /api/auth/signin | login an account |
POST | /api/auth/signout | logout the account |
GET | /api/test/all | retrieve public content |
GET | /api/test/user | access User’s content |
GET | /api/test/mod | access Moderator’s content |
GET | /api/test/admin | access Admin’s content |
Flow for Login and Registration

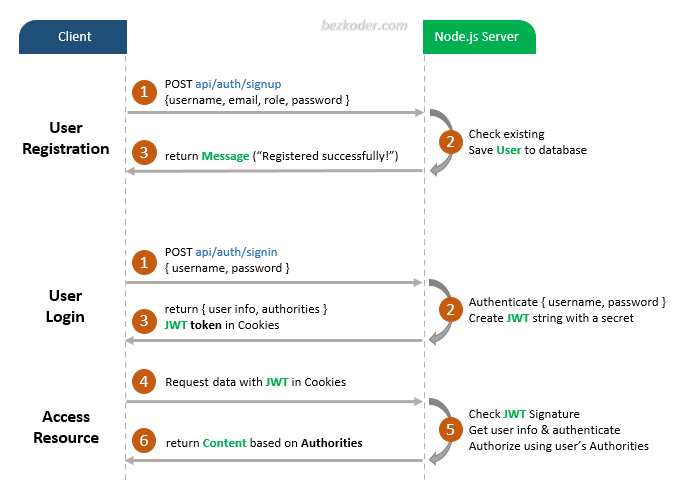

Following diagram shows you the flow that we’re gonna implement for User Registration, User Login and Authorization process.

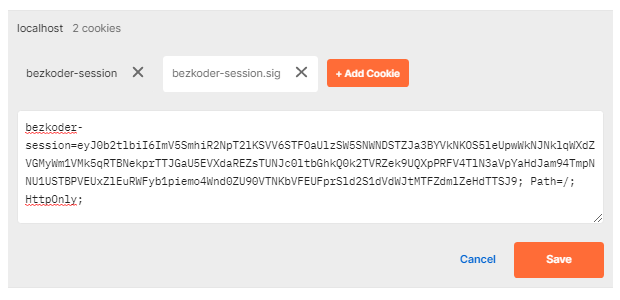

A legal JWT must be stored in Cookies if Client accesses protected resources.
Node.js Express Login with MongoDB Architecture
Here is an overview of our Node.js Express App:
Via Express routes, HTTP request that matches a route will be checked by CORS Middleware before coming to Security layer.
Security layer includes:
- JWT Authentication Middleware: verify SignUp, verify token
- Authorization Middleware: check User’s roles with record in database
An error message will be sent as HTTP response to Client when the middlewares throw any error, .
Controllers interact with MongoDB Database via Mongoose library and send HTTP response (token, user information, data based on roles…) to Client.
Technology
- Express 4.17.1
- cookie-session 1.4.0
- bcryptjs 2.4.3
- jsonwebtoken 8.5.1
- mongoose 5.13.13
- MongoDB
Project Structure

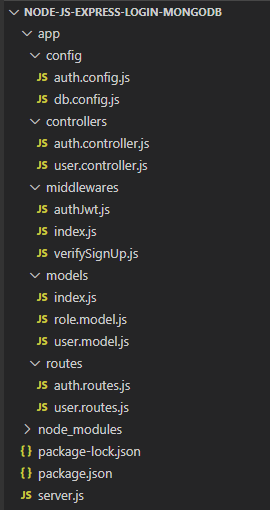

This is directory structure for our Node.js Express & MongoDB Login application:
– config
- configure MongoDB database
- configure Auth Key
– routes
- auth.routes.js: POST signup, signin & signout
- user.routes.js: GET public & protected resources
– middlewares
- verifySignUp.js: check duplicate Username or Email
- authJwt.js: verify Token, check User roles in database
– controllers
- auth.controller.js: handle signup, signin & signout actions
- user.controller.js: return public & protected content
– models for Mongoose Models
- user.model.js
- role.model.js
– server.js: import and initialize necessary modules and routes, listen for connections.
Create Node.js Login with MongoDB App
Create a folder for our project with command:
$ mkdir node-js-express-login--mongodb
$ cd node-js-express-login--mongodb
Then we initialize the Node.js App with a package.json file:
npm init
name: (node-js-express-login--mongodb)
version: (1.0.0)
description: Node.js Express + MongoDB: Login and Registration example with Mongoose
entry point: (index.js) server.js
test command:
git repository:
keywords: node.js, express, jwt, login, registration, authentication, authorization, mongodb, mongoose
author: bezkoder
license: (ISC)
Is this ok? (yes) yes
Let’s install necessary modules such as: express
, cors
, cookie-session
, mongoose
, jsonwebtoken
and bcryptjs
.
Run the command:
npm install express mongoose cors cookie-session jsonwebtoken bcryptjs --save
Check package.json file, you can see it looks like this:
{
"name": "node-js-jwt-auth-mongodb",
"version": "1.0.0",
"description": "Node.js + MongoDB: JWT Authentication & Authorization",
"main": "server.js",
"scripts": {
"test": "echo \"Error: no test specified\" && exit 1"
},
"keywords": [
"node.js",
"express",
"jwt",
"login",
"registration",
"authentication",
"authorization",
"mongodb",
"mongoose"
],
"author": "bezkoder",
"license": "ISC",
"dependencies": {
"bcryptjs": "^2.4.3",
"cookie-session": "^1.4.0",
"cors": "^2.8.5",
"express": "^4.17.1",
"jsonwebtoken": "^8.5.1",
"mongoose": "^5.13.13"
}
}
Setup Express web server
In the root folder, let’s create a new server.js file:
const express = require("express");
const cors = require("cors");
const cookieSession = require("cookie-session");
const app = express();
var corsOptions = {
origin: "http://localhost:8081"
};
app.use(cors(corsOptions));
// parse requests of content-type - application/json
app.use(express.json());
// parse requests of content-type - application/x-www-form-urlencoded
app.use(express.urlencoded({ extended: true }));
app.use(
cookieSession({
name: "bezkoder-session",
secret: "COOKIE_SECRET", // should use as secret environment variable
httpOnly: true
})
);
// simple route
app.get("/", (req, res) => {
res.json({ message: "Welcome to bezkoder application." });
});
// set port, listen for requests
const PORT = process.env.PORT || 8080;
app.listen(PORT, () => {
console.log(`Server is running on port ${PORT}.`);
});
Let me explain what we’ve just done:
– import express
, cookie-session
and cors
modules:
- Express is for building the Rest apis
- cookie-session helps to stores the session data on the client within a cookie without requiring any database/resources on the server side
- cors provides Express middleware to enable CORS
– create an Express app, then add request parsing, cookie-based session middleware and cors
middlewares using app.use()
method. Notice that we set origin: http://localhost:8081
.
– define a GET route which is simple for test.
– listen on port 8080 for incoming requests.
Let’s talk about following code:
app.use(
cookieSession({
name: "bezkoder-session",
// keys: ['key1', 'key2'],
secret: "COOKIE_SECRET", // should use as secret environment variable
httpOnly: true
})
);
keys
: sign & verify cookie values. Set cookies are always signed withkeys[0]
, while the other keys are valid for verification, allowing for key rotation.secret
: we don’t providekeys
, so we use this as single key. In practice, you must provide value as secret environment variable (.env
file for example) for security.httpOnly
: indicate that the cookie is only to be sent over HTTP(S), and not made available to client JavaScript.
Now let’s run the app with command: node server.js
.
Open your browser with url http://localhost:8080/, you will see:
Configure MongoDB database
In the app folder, create config folder for configuration.
Then create a new db.config.js file that contains parameters for setting up MongoDB later:
module.exports = {
HOST: "localhost",
PORT: 27017,
DB: "bezkoder_db"
};
Define the Mongoose Model
In models folder, create User
and Role
data model as following code:
models/role.model.js
const mongoose = require("mongoose");
const Role = mongoose.model(
"Role",
new mongoose.Schema({
name: String
})
);
module.exports = Role;
models/user.model.js
const mongoose = require("mongoose");
const User = mongoose.model(
"User",
new mongoose.Schema({
username: String,
email: String,
password: String,
roles: [
{
type: mongoose.Schema.Types.ObjectId,
ref: "Role"
}
]
})
);
module.exports = User;

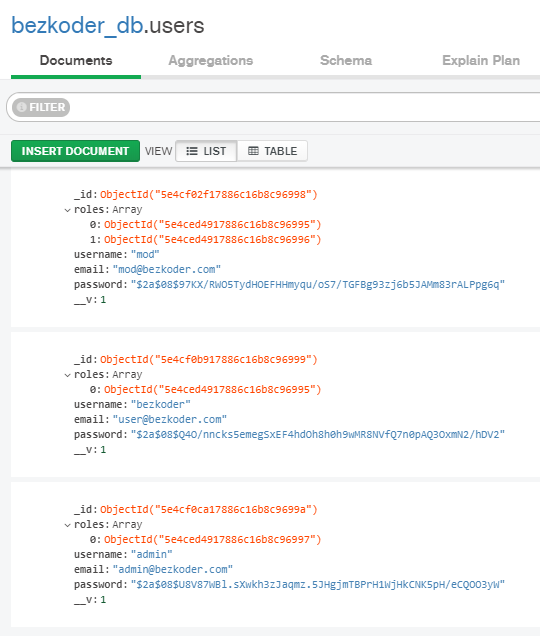

These Mongoose Models represents users & roles collections in MongoDB database.
User
object will have a roles
array that contains ids in roles collection as reference.
This kind is called Reference Data Models or Normalization. You can find more details at:
MongoDB One-to-Many Relationship tutorial with Mongoose examples
After initializing Mongoose, we don’t need to write CRUD functions because Mongoose supports all of them:
- create a new User: object.save()
- find a User by id: User.findById(id)
- find User by email: User.findOne({ email: … })
- find User by username: User.findOne({ username: … })
- find all Roles which name in given
roles
array: Role.find({ name: { $in: roles } })
These functions will be used in our Controllers and Middlewares.
Initialize Mongoose
Now create app/models/index.js with content like this:
const mongoose = require('mongoose');
mongoose.Promise = global.Promise;
const db = {};
db.mongoose = mongoose;
db.user = require("./user.model");
db.role = require("./role.model");
db.ROLES = ["user", "admin", "moderator"];
module.exports = db;
Open server.js and add following code to open Mongoose connection to MongoDB database:
...
const app = express();
app.use(...);
const db = require("./app/models");
const Role = db.role;
db.mongoose
.connect(`mongodb://${dbConfig.HOST}:${dbConfig.PORT}/${dbConfig.DB}`, {
useNewUrlParser: true,
useUnifiedTopology: true
})
.then(() => {
console.log("Successfully connect to MongoDB.");
initial();
})
.catch(err => {
console.error("Connection error", err);
process.exit();
});
...
function initial() {
Role.estimatedDocumentCount((err, count) => {
if (!err && count === 0) {
new Role({
name: "user"
}).save(err => {
if (err) {
console.log("error", err);
}
console.log("added 'user' to roles collection");
});
new Role({
name: "moderator"
}).save(err => {
if (err) {
console.log("error", err);
}
console.log("added 'moderator' to roles collection");
});
new Role({
name: "admin"
}).save(err => {
if (err) {
console.log("error", err);
}
console.log("added 'admin' to roles collection");
});
}
});
}
initial()
function helps us to create 3 important rows in roles
collection.
Configure Auth Key
jsonwebtoken functions such as verify()
or sign()
use algorithm that needs a secret key (as String) to encode and decode token.
In the app/config folder, create auth.config.js file with following code:
module.exports = {
secret: "bezkoder-secret-key"
};
You can create your own secret
String.
Create Middleware functions
To verify a Signup action, we need 2 functions:
– check duplications for username
and email
– check if roles
in the request is legal or not
middlewares/verifySignUp.js
const db = require("../models");
const ROLES = db.ROLES;
const User = db.user;
checkDuplicateUsernameOrEmail = (req, res, next) => {
// Username
User.findOne({
username: req.body.username
}).exec((err, user) => {
if (err) {
res.status(500).send({ message: err });
return;
}
if (user) {
res.status(400).send({ message: "Failed! Username is already in use!" });
return;
}
// Email
User.findOne({
email: req.body.email
}).exec((err, user) => {
if (err) {
res.status(500).send({ message: err });
return;
}
if (user) {
res.status(400).send({ message: "Failed! Email is already in use!" });
return;
}
next();
});
});
};
checkRolesExisted = (req, res, next) => {
if (req.body.roles) {
for (let i = 0; i < req.body.roles.length; i++) {
if (!ROLES.includes(req.body.roles[i])) {
res.status(400).send({
message: `Failed! Role ${req.body.roles[i]} does not exist!`
});
return;
}
}
}
next();
};
const verifySignUp = {
checkDuplicateUsernameOrEmail,
checkRolesExisted
};
module.exports = verifySignUp;
To process Authentication & Authorization, we create following functions:
- check if token
is provided, legal or not. We get token from HTTP request session, then use jsonwebtoken's verify()
function
- check if roles
of the user contains required role or not
middlewares/authJwt.js
const jwt = require("jsonwebtoken");
const config = require("../config/auth.config.js");
const db = require("../models");
const User = db.user;
const Role = db.role;
verifyToken = (req, res, next) => {
let token = req.session.token;
if (!token) {
return res.status(403).send({ message: "No token provided!" });
}
jwt.verify(token, config.secret, (err, decoded) => {
if (err) {
return res.status(401).send({ message: "Unauthorized!" });
}
req.userId = decoded.id;
next();
});
};
isAdmin = (req, res, next) => {
User.findById(req.userId).exec((err, user) => {
if (err) {
res.status(500).send({ message: err });
return;
}
Role.find(
{
_id: { $in: user.roles },
},
(err, roles) => {
if (err) {
res.status(500).send({ message: err });
return;
}
for (let i = 0; i < roles.length; i++) {
if (roles[i].name === "admin") {
next();
return;
}
}
res.status(403).send({ message: "Require Admin Role!" });
return;
}
);
});
};
isModerator = (req, res, next) => {
User.findById(req.userId).exec((err, user) => {
if (err) {
res.status(500).send({ message: err });
return;
}
Role.find(
{
_id: { $in: user.roles },
},
(err, roles) => {
if (err) {
res.status(500).send({ message: err });
return;
}
for (let i = 0; i < roles.length; i++) {
if (roles[i].name === "moderator") {
next();
return;
}
}
res.status(403).send({ message: "Require Moderator Role!" });
return;
}
);
});
};
const authJwt = {
verifyToken,
isAdmin,
isModerator,
};
module.exports = authJwt;
middlewares/index.js
const authJwt = require("./authJwt");
const verifySignUp = require("./verifySignUp");
module.exports = {
authJwt,
verifySignUp
};
Create Controllers
Controller for Registration, Login, Logout
There are 3 main functions for Authentication:
- signup
: create new User in MongoDB database (role is user if not specifying role)
- signin
:
- find
username
of the request in database, if it exists - compare
password
withpassword
in database using bcrypt, if it is correct - generate a token using jsonwebtoken
- return user information & access Token
- signout
: clear current session.
controllers/auth.controller.js
const config = require("../config/auth.config");
const db = require("../models");
const User = db.user;
const Role = db.role;
var jwt = require("jsonwebtoken");
var bcrypt = require("bcryptjs");
exports.signup = (req, res) => {
const user = new User({
username: req.body.username,
email: req.body.email,
password: bcrypt.hashSync(req.body.password, 8),
});
user.save((err, user) => {
if (err) {
res.status(500).send({ message: err });
return;
}
if (req.body.roles) {
Role.find(
{
name: { $in: req.body.roles },
},
(err, roles) => {
if (err) {
res.status(500).send({ message: err });
return;
}
user.roles = roles.map((role) => role._id);
user.save((err) => {
if (err) {
res.status(500).send({ message: err });
return;
}
res.send({ message: "User was registered successfully!" });
});
}
);
} else {
Role.findOne({ name: "user" }, (err, role) => {
if (err) {
res.status(500).send({ message: err });
return;
}
user.roles = [role._id];
user.save((err) => {
if (err) {
res.status(500).send({ message: err });
return;
}
res.send({ message: "User was registered successfully!" });
});
});
}
});
};
exports.signin = (req, res) => {
User.findOne({
username: req.body.username,
})
.populate("roles", "-__v")
.exec((err, user) => {
if (err) {
res.status(500).send({ message: err });
return;
}
if (!user) {
return res.status(404).send({ message: "User Not found." });
}
var passwordIsValid = bcrypt.compareSync(
req.body.password,
user.password
);
if (!passwordIsValid) {
return res.status(401).send({ message: "Invalid Password!" });
}
var token = jwt.sign({ id: user.id }, config.secret, {
expiresIn: 86400, // 24 hours
});
var authorities = [];
for (let i = 0; i < user.roles.length; i++) {
authorities.push("ROLE_" + user.roles[i].name.toUpperCase());
}
req.session.token = token;
res.status(200).send({
id: user._id,
username: user.username,
email: user.email,
roles: authorities,
});
});
};
exports.signout = async (req, res) => {
try {
req.session = null;
return res.status(200).send({ message: "You've been signed out!" });
} catch (err) {
this.next(err);
}
};
Controller for testing Authorization
There are 4 functions:
– /api/test/all
for public access
– /api/test/user
for loggedin users (any role)
– /api/test/mod
for moderator users
– /api/test/admin
for admin users
controllers/user.controller.js
exports.allAccess = (req, res) => {
res.status(200).send("Public Content.");
};
exports.userBoard = (req, res) => {
res.status(200).send("User Content.");
};
exports.adminBoard = (req, res) => {
res.status(200).send("Admin Content.");
};
exports.moderatorBoard = (req, res) => {
res.status(200).send("Moderator Content.");
};
Let's combine middlewares with controller functions in the next section.
Define Routes
When a client sends request for an endpoint using HTTP request (GET, POST, PUT, DELETE), we need to determine how the server will response by setting up the routes.
We can separate our routes into 2 part: for Authentication and for Authorization (accessing protected resources).
Authentication:
- POST
/api/auth/signup
- POST
/api/auth/signin
- POST
/api/auth/signout
routes/auth.routes.js
const { verifySignUp } = require("../middlewares");
const controller = require("../controllers/auth.controller");
module.exports = function(app) {
app.use(function(req, res, next) {
res.header(
"Access-Control-Allow-Headers",
"Origin, Content-Type, Accept"
);
next();
});
app.post(
"/api/auth/signup",
[
verifySignUp.checkDuplicateUsernameOrEmail,
verifySignUp.checkRolesExisted
],
controller.signup
);
app.post("/api/auth/signin", controller.signin);
app.post("/api/auth/signout", controller.signout);
};
Authorization:
- GET
/api/test/all
- GET
/api/test/user
for loggedin users (user/moderator/admin) - GET
/api/test/mod
for moderator - GET
/api/test/admin
for admin
routes/user.routes.js
const { authJwt } = require("../middlewares");
const controller = require("../controllers/user.controller");
module.exports = function(app) {
app.use(function(req, res, next) {
res.header(
"Access-Control-Allow-Headers",
"Origin, Content-Type, Accept"
);
next();
});
app.get("/api/test/all", controller.allAccess);
app.get("/api/test/user", [authJwt.verifyToken], controller.userBoard);
app.get(
"/api/test/mod",
[authJwt.verifyToken, authJwt.isModerator],
controller.moderatorBoard
);
app.get(
"/api/test/admin",
[authJwt.verifyToken, authJwt.isAdmin],
controller.adminBoard
);
};
Don't forget to add these routes in server.js:
...
// routes
require('./app/routes/auth.routes')(app);
require('./app/routes/user.routes')(app);
// set port, listen for requests
...
Run & Test with Results
Run Node.js application with command: node server.js
.
The console shows:
Server is running on port 8080.
Successfully connect to MongoDB.
added 'user' to roles collection
added 'admin' to roles collection
added 'moderator' to roles collection
Let's check roles
collection in MongoDB database:

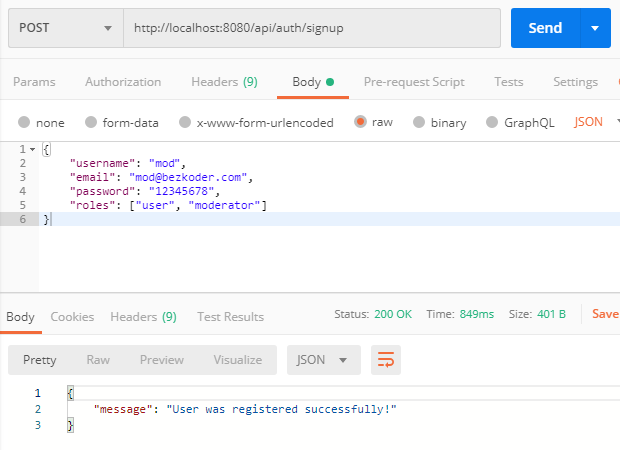

Register some users with /signup
API:
- admin with
admin
role - mod with
moderator
anduser
roles - bezkoder with
user
role
users
collection after signup could look like this.
Access public resource: GET /api/test/all

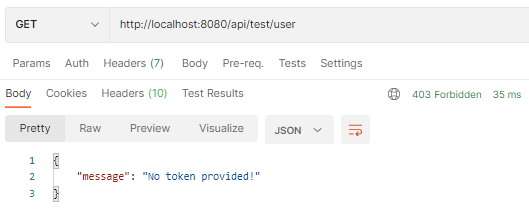

Access protected resource: GET /api/test/user

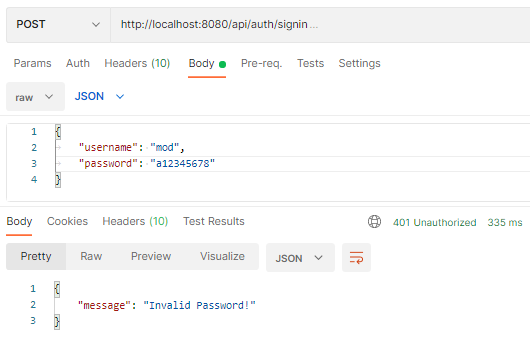

Login an account (with wrong password): POST /api/auth/signin

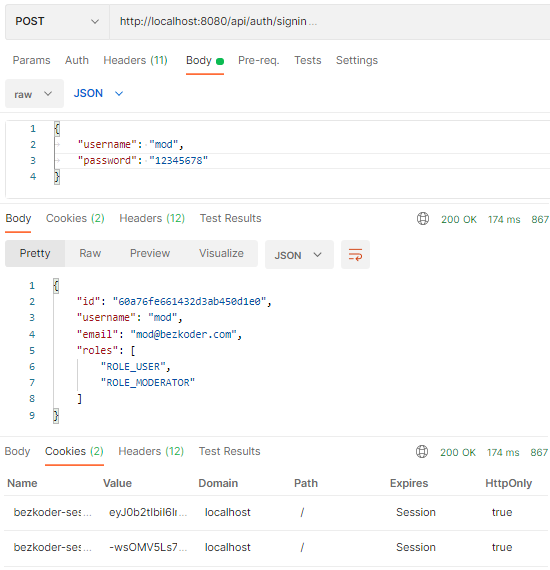

Login with correct username and password: POST /api/auth/signin
You can check the Cookies with JWT:
Access protected resources with legal account: GET /api/test/user
Conclusion
Congratulation! Today we've learned so many interesting things about Node.js Express User Login and Registration with MongoDB and JWT (JSONWebToken) in just a Rest Api example. You also know way to implement role-based Authorization to restrict access to protected resources.
You should continue to know how to implement Refresh Token:
Node.js & MongoDB: JWT Refresh Token example
If you need a working front-end for this back-end, you can find Client App in the post:
(just change Local Storage to Cookies)
- Vue
- Angular 8 / Angular 10 / Angular 11 / Angular 12 / Angular 13
- React / React Hooks / React Redux JWT Authentication example
Happy learning! See you again.
Further Reading
- https://www.npmjs.com/package/express
- http://expressjs.com/en/guide/routing.html
- In-depth Introduction to JWT-JSON Web Token
- https://mongoosejs.com/docs/queries.html
- https://mongoosejs.com/docs/api/model.html
Fullstack:
- MEVN: Vue + Node.js + Express + MongoDB example
- MEAN:
- Angular 8 + Node.js + Express + MongoDB example
- Angular 10 + Node.js + Express + MongoDB example
- Angular 11 + Node.js + Express + MongoDB example
- Angular 12 + Node.js + Express + MongoDB example
- Angular 13 + Node.js + Express + MongoDB example
- MERN: React + Node.js + Express + MongoDB example
Deployment: Docker Compose: Node.js Express and MongoDB example
Source Code
You can find the complete source code for this tutorial on Github.
got as far as Initialize Mongoose, im getting ReferenceError: dbConfig is not defined
ive probably not understand what the three dots represent. VS code suggested these weren’t code so I removed them, then removed app.use(…); aswell because that does nothing
was something supposed to replace the three dots? what do they mean?
Hi, the dots (…) is just for making the code more concise. You can get the full code on Github.
Hi, I have this error, can you help me please?
TypeError: app.use is not a function
at module.exports (…/routes/auth.routes.js:6:7)
Great Node Auth tutorial, exactly what I wanted to find.
This is wonderful blog and here is excellent tutorial. Thanks!
Could you make a tutorial combining this with Vue 3 ?
Hi, I will. 🙂
Currently you can read following tutorial, just try to change the way you get and set Token:
Vue 3 Authentication with JWT, Vuex, Axios and Vue Router
Thank you! I will try this now
Many thanks
