React.js Login & Registration example - JWT & HttpOnly Cookie

In this tutorial, we’re gonna build a React.js Login & Registration example with JWT & HttpOnly Cookie, React Router, Axios and Bootstrap (without Redux). I will show you:

Flow for User Signup, Login, Logout with JWT & HttpOnly Cookie
Project Structure for React Hooks JWT Login example (without Redux) with LocalStorage, React Router & Axios
Creating Reactjs Function Components with Hooks & Form Validation
React Function Components for accessing protected Resources (Authorization)
Dynamic Navigation Bar in React Hooks App

Fullstack (JWT Authentication & Authorization example):
– React + Spring Boot
– React + Node.js Express + MySQL/PostgreSQL
– React + Node.js Express + MongoDB

Overview of React.js Login and Registration example

We will build a React Hooks application with Login, Logout and Registration using JWT and HttpOnly Cookie in that:

There are Login/Logout, Signup pages.
Form data will be validated by front-end before being sent to back-end.
Depending on User’s roles (admin, moderator, user), Navigation Bar changes its items automatically.

Here are the screenshots:

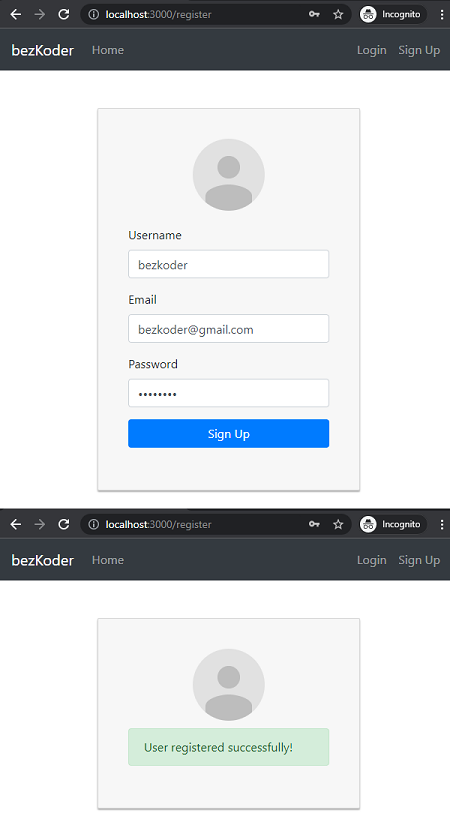

– Signup Page:

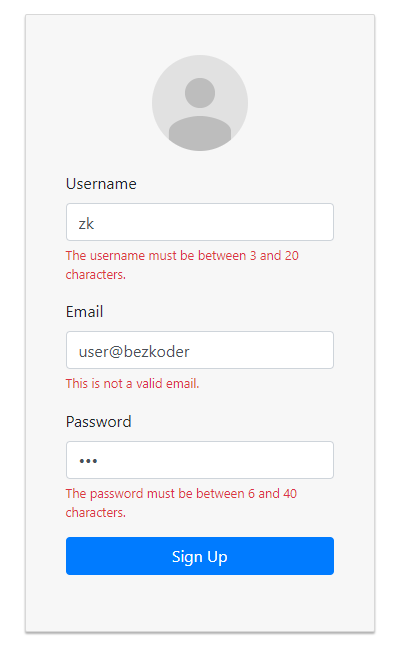

– React Login and Registration Form Validation:

If you need Form Validation with React Hook Form 7, please visit:
React Form Validation with Hooks example

Or Formik and Yup:
React Form Validation example with Hooks, Formik and Yup

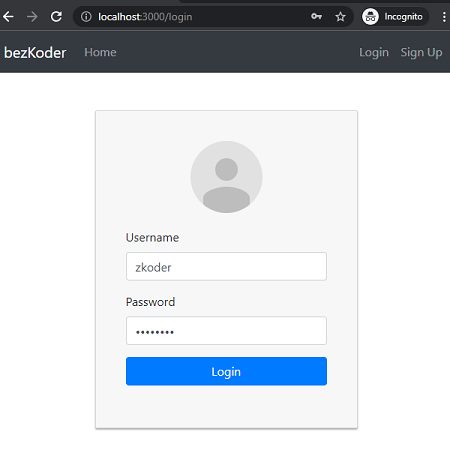

– Login Page:

HttpOnly Cookie set by the Server:

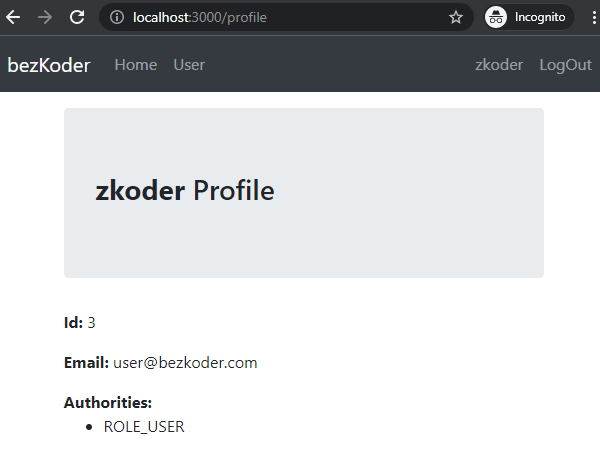

– Profile Page (for successful Login):

– For Authorization (Moderator account login), the navigation bar will change by authorities:

HttpOnly Cookie sent with HTTP Request:

– Browser Local Storage for storing user information:

If you want to add refresh token, please visit:
React Refresh Token with JWT and Axios Interceptors

User Authentication and Authorization Flow

For JWT Authentication, we’re gonna call 3 endpoints:

POST api/auth/signup for User Registration
POST api/auth/signin for User Login
POST api/auth/signout for User Logout

The following flow shows you an overview of Requests and Responses that React Client will make or receive. This React Client uses JWT in Cookies while sending request to protected resources.

You can find step by step to implement these back-end servers in following tutorial:

Demo Video

This is full React + Spring Boot JWT Authentication & Authorization demo (with form validation, check signup username/email duplicates, test authorization with 3 roles: Admin, Moderator, User):

React + Node Express:

The React project in video uses React Components instead of React Hooks, and Local Storage instead of HttpOnly Cookie for storing JWT, but the flow or structure is the same.

React Function Component Diagram with Router, Axios & LocalStorage

Let’s look at the diagram below.

– The App component is a container with React Router (BrowserRouter). Basing on the state, the navbar can display its items.

– Login & Register pages have form for data submission (with support of react-validation library). They call methods from auth.service to make login/register request.

– auth.service methods use axios to make HTTP requests. It also stores or gets User Profile from Browser Local Storage inside these methods.

– Home page is public for all visitor.

– Profile page displays user information after the login action is successful.

– BoardUser, BoardModerator, BoardAdmin pages will be displayed by state user.roles. In these pages, we use user.service to access protected resources from Web API.

– user.service methods use axios to make Authorization requests for accessing protected resources (with JWT in HttpOnly Cookie).

If you want to use Typescript instead, please visit:
React Typescript Authentication example with Hooks

Technology

We’re gonna use these modules:

React 17
react-router-dom 6.2.1
axios 0.24.0
react-validation 3.0.7
Bootstrap 4
validator 13.7.0
http-proxy-middleware 2

Project Structure

This is folders & files structure for this React application:

With the explanation in diagram above, you can understand the project structure easily.

For common folder, there are two ways to handle JWT Token expiration.

For more details, please visit:
Handle JWT Token expiration in React with Hooks

Setup React Login and Registration Project

Open cmd at the folder you want to save Project folder, run command:
npx create-react-app react-hooks-login-registration

Add React Router

– Run the command:
npm install react-router-dom
Or: yarn add react-router-dom

– Open src/index.js and wrap App component by BrowserRouter object.

import React from 'react';
import ReactDOM from 'react-dom';
import { BrowserRouter } from "react-router-dom";

import './index.css';
import App from './App';
import reportWebVitals from './reportWebVitals';

ReactDOM.render(
  <BrowserRouter>
    <App />
  </BrowserRouter>,
  document.getElementById('root')
);

reportWebVitals();

Import Bootstrap

Run command:
npm install [email protected]
Or: yarn add [email protected]

Open src/App.js and modify the code inside it as following-

import React from "react";
import "bootstrap/dist/css/bootstrap.min.css";

function App() {
  return (
    ...
  );
}

export default App;

Setup Proxy

The HttpOnly Cookie approach in this tutorial works if the React app and the back-end server hosted in same domain. So we need to use http-proxy-middleware for local development.

Run command:
npm install http-proxy-middleware
Or: yarn add http-proxy-middleware

In the src folder, create setupProxy.js file with following code:

const { createProxyMiddleware } = require("http-proxy-middleware");

module.exports = function (app) {
  app.use(
    "/api",
    createProxyMiddleware({
      target: "http://localhost:8080",
      changeOrigin: true,
    })
  );
};

Create Services

We’re gonna create two services in src/services folder:

Authentication service
Data service

services

auth.service.js (Authentication service)

user.service.js (Data service)

Before working with these services, we need to install Axios with command:
npm install axios
Or: yarn add axios

Authentication service

The service uses Axios for HTTP requests and Local Storage for user information & JWT.
It provides following important functions:

login(): POST {username, password} & save User Profile to Local Storage
logout(): POST logout request, remove User Profile from Local Storage
register(): POST {username, email, password}
getCurrentUser(): get stored user information

services/auth.service.js

import axios from "axios";

const API_URL = "http://localhost:3000/api/auth/";

const register = (username, email, password) => {
  return axios.post(API_URL + "signup", {
    username,
    email,
    password,
  });
};

const login = (username, password) => {
  return axios
    .post(API_URL + "signin", {
      username,
      password,
    })
    .then((response) => {
      if (response.data.username) {
        localStorage.setItem("user", JSON.stringify(response.data));
      }

      return response.data;
    });
};

const logout = () => {
  localStorage.removeItem("user");
  return axios.post(API_URL + "signout").then((response) => {
    return response.data;
  });
};

const getCurrentUser = () => {
  return JSON.parse(localStorage.getItem("user"));
};

const AuthService = {
  register,
  login,
  logout,
  getCurrentUser,
}

export default AuthService;

Data service

We also have methods for retrieving data from server, in the case we access protected resources. Because HttpOnly Cookies will be automatically sent along with HTTP requests, so we just simply use Axios without caring JWT.

services/user.service.js

import axios from "axios";

const API_URL = "http://localhost:3000/api/test/";

const getPublicContent = () => {
  return axios.get(API_URL + "all");
};

const getUserBoard = () => {
  return axios.get(API_URL + "user");
};

const getModeratorBoard = () => {
  return axios.get(API_URL + "mod");
};

const getAdminBoard = () => {
  return axios.get(API_URL + "admin");
};

const UserService = {
  getPublicContent,
  getUserBoard,
  getModeratorBoard,
  getAdminBoard,
}

export default UserService;

Create React Pages for Authentication

In src folder, create new folder named components and add several files as following:

components

Profile.js

Form Validation overview

Now we need a library for Form validation, so we’re gonna add react-validation library to our project.
Run the command: npm install react-validation validator

To use react-validation in this example, you need to import following items:

import Form from "react-validation/build/form";
import Input from "react-validation/build/input";
import CheckButton from "react-validation/build/button";

import { isEmail } from "validator";

We also use isEmail() function from validator to verify email.

This is how we put them in render() method with validations attribute:

const required = value => {
  if (!value) {
    return (
      <div className="invalid-feedback d-block">
        This field is required!
      </div>
    );
  }
};

const email = value => {
  if (!isEmail(value)) {
    return (
      <div className="invalid-feedback d-block">
        This is not a valid email.
      </div>
    );
  }
};

render() {
  return (
  ...
    <Form
      onSubmit={handleLogin}
      ref={form}
    >
      ...
      <Input
        type="text"
        className="form-control"
        ...
        validations={[required, email]}
      />

      <CheckButton
        style={{ display: "none" }}
        ref={checkBtn}
      />
    </Form>
  ...
  );
}

We’re gonna call Form validateAll() method to check validation functions in validations. Then CheckButton helps us to verify if the form validation is successful or not. So this button will not display on the form.

form.validateAll();

if (checkBtn.context._errors.length === 0) {
  // do something when no error
}

If you need Form Validation with React Hook Form 7, please visit:
React Form Validation with Hooks example

Or Formik and Yup:
React Form Validation example with Hooks, Formik and Yup

Login Page

This page has a Form with username & password.
– We’re gonna verify them as required field.
– If the verification is ok, we call AuthService.login() method, then direct user to Profile page: props.history.push("/profile");, or show message with response error.

components/Login.js

import React, { useState, useRef } from "react";
import { useNavigate } from "react-router-dom";
import Form from "react-validation/build/form";
import Input from "react-validation/build/input";
import CheckButton from "react-validation/build/button";

import AuthService from "../services/auth.service";

const required = (value) => {
  if (!value) {
    return (
      <div className="invalid-feedback d-block">
        This field is required!
      </div>
    );
  }
};

const Login = () => {
  const form = useRef();
  const checkBtn = useRef();

  const [username, setUsername] = useState("");
  const [password, setPassword] = useState("");
  const [loading, setLoading] = useState(false);
  const [message, setMessage] = useState("");

  const navigate = useNavigate();

  const onChangeUsername = (e) => {
    const username = e.target.value;
    setUsername(username);
  };

  const onChangePassword = (e) => {
    const password = e.target.value;
    setPassword(password);
  };

  const handleLogin = (e) => {
    e.preventDefault();

    setMessage("");
    setLoading(true);

    form.current.validateAll();

    if (checkBtn.current.context._errors.length === 0) {
      AuthService.login(username, password).then(
        () => {
          navigate("/profile");
          window.location.reload();
        },
        (error) => {
          const resMessage =
            (error.response &&
              error.response.data &&
              error.response.data.message) ||
            error.message ||
            error.toString();

          setLoading(false);
          setMessage(resMessage);
        }
      );
    } else {
      setLoading(false);
    }
  };

  return (
    <div className="col-md-12">
      <div className="card card-container">
        <img
          src="//ssl.gstatic.com/accounts/ui/avatar_2x.png"
          alt="profile-img"
          className="profile-img-card"
        />

        <Form onSubmit={handleLogin} ref={form}>
          <div className="form-group">
            <label htmlFor="username">Username</label>
            <Input
              type="text"
              className="form-control"
              name="username"
              value={username}
              onChange={onChangeUsername}
              validations={[required]}
            />
          </div>

          <div className="form-group">
            <label htmlFor="password">Password</label>
            <Input
              type="password"
              className="form-control"
              name="password"
              value={password}
              onChange={onChangePassword}
              validations={[required]}
            />
          </div>

          <div className="form-group">
            <button className="btn btn-primary btn-block" disabled={loading}>
              {loading && (
                <span className="spinner-border spinner-border-sm"></span>
              )}
              <span>Login</span>
            </button>
          </div>

          {message && (
            <div className="form-group">
              <div className="alert alert-danger" role="alert">
                {message}
              </div>
            </div>
          )}
          <CheckButton style={{ display: "none" }} ref={checkBtn} />
        </Form>
      </div>
    </div>
  );
};

export default Login;

Register Page

This page is similar to Login Page.

For Form Validation, there are some more details:

username: required, between 3 and 20 characters
email: required, email format
password: required, between 6 and 40 characters

We’re gonna call AuthService.register() method and show response message (successful or error).

components/Register.js

import React, { useState, useRef } from "react";
import Form from "react-validation/build/form";
import Input from "react-validation/build/input";
import CheckButton from "react-validation/build/button";
import { isEmail } from "validator";

import AuthService from "../services/auth.service";

const required = (value) => {
  if (!value) {
    return (
      <div className="invalid-feedback d-block">
        This field is required!
      </div>
    );
  }
};

const validEmail = (value) => {
  if (!isEmail(value)) {
    return (
      <div className="invalid-feedback d-block">
        This is not a valid email.
      </div>
    );
  }
};

const vusername = (value) => {
  if (value.length < 3 || value.length > 20) {
    return (
      <div className="invalid-feedback d-block">
        The username must be between 3 and 20 characters.
      </div>
    );
  }
};

const vpassword = (value) => {
  if (value.length < 6 || value.length > 40) {
    return (
      <div className="invalid-feedback d-block">
        The password must be between 6 and 40 characters.
      </div>
    );
  }
};

const Register = (props) => {
  const form = useRef();
  const checkBtn = useRef();

  const [username, setUsername] = useState("");
  const [email, setEmail] = useState("");
  const [password, setPassword] = useState("");
  const [successful, setSuccessful] = useState(false);
  const [message, setMessage] = useState("");

  const onChangeUsername = (e) => {
    const username = e.target.value;
    setUsername(username);
  };

  const onChangeEmail = (e) => {
    const email = e.target.value;
    setEmail(email);
  };

  const onChangePassword = (e) => {
    const password = e.target.value;
    setPassword(password);
  };

  const handleRegister = (e) => {
    e.preventDefault();

    setMessage("");
    setSuccessful(false);

    form.current.validateAll();

    if (checkBtn.current.context._errors.length === 0) {
      AuthService.register(username, email, password).then(
        (response) => {
          setMessage(response.data.message);
          setSuccessful(true);
        },
        (error) => {
          const resMessage =
            (error.response &&
              error.response.data &&
              error.response.data.message) ||
            error.message ||
            error.toString();

          setMessage(resMessage);
          setSuccessful(false);
        }
      );
    }
  };

  return (
    <div className="col-md-12">
      <div className="card card-container">
        <img
          src="//ssl.gstatic.com/accounts/ui/avatar_2x.png"
          alt="profile-img"
          className="profile-img-card"
        />

        <Form onSubmit={handleRegister} ref={form}>
          {!successful && (
            <div>
              <div className="form-group">
                <label htmlFor="username">Username</label>
                <Input
                  type="text"
                  className="form-control"
                  name="username"
                  value={username}
                  onChange={onChangeUsername}
                  validations={[required, vusername]}
                />
              </div>

              <div className="form-group">
                <label htmlFor="email">Email</label>
                <Input
                  type="text"
                  className="form-control"
                  name="email"
                  value={email}
                  onChange={onChangeEmail}
                  validations={[required, validEmail]}
                />
              </div>

              <div className="form-group">
                <label htmlFor="password">Password</label>
                <Input
                  type="password"
                  className="form-control"
                  name="password"
                  value={password}
                  onChange={onChangePassword}
                  validations={[required, vpassword]}
                />
              </div>

              <div className="form-group">
                <button className="btn btn-primary btn-block">Sign Up</button>
              </div>
            </div>
          )}

          {message && (
            <div className="form-group">
              <div
                className={
                  successful ? "alert alert-success" : "alert alert-danger"
                }
                role="alert"
              >
                {message}
              </div>
            </div>
          )}
          <CheckButton style={{ display: "none" }} ref={checkBtn} />
        </Form>
      </div>
    </div>
  );
};

export default Register;

Profile Page

This page gets current User from Local Storage by calling AuthService.getCurrentUser() method and show user information.

components/Profile.js

import React from "react";
import AuthService from "../services/auth.service";

const Profile = () => {
  const currentUser = AuthService.getCurrentUser();

  return (
    <div className="container">
      <header className="jumbotron">
        <h3>
          <strong>{currentUser.username}</strong> Profile
        </h3>
      </header>
      <p>
        <strong>Id:</strong> {currentUser.id}
      </p>
      <p>
        <strong>Email:</strong> {currentUser.email}
      </p>
      <strong>Authorities:</strong>
      <ul>
        {currentUser.roles &&
          currentUser.roles.map((role, index) => <li key={index}>{role}</li>)}
      </ul>
    </div>
  );
};

export default Profile;

Create React Pages for accessing Resources

These pages will use UserService to request data from API.

components

Home.js

BoardUser.js

BoardModerator.js

BoardAdmin.js

Home Page

This is a public page that shows public content. People don’t need to log in to view this page.

components/Home.js

import React, { useState, useEffect } from "react";

import UserService from "../services/user.service";

const Home = () => {
  const [content, setContent] = useState("");

  useEffect(() => {
    UserService.getPublicContent().then(
      (response) => {
        setContent(response.data);
      },
      (error) => {
        const _content =
          (error.response && error.response.data) ||
          error.message ||
          error.toString();

        setContent(_content);
      }
    );
  }, []);

  return (
    <div className="container">
      <header className="jumbotron">
        <h3>{content}</h3>
      </header>
    </div>
  );
};

export default Home;

Role-based Pages

We’re gonna have 3 pages for accessing protected data:

BoardUser page calls UserService.getUserBoard()
BoardModerator page calls UserService.getModeratorBoard()
BoardAdmin page calls UserService.getAdminBoard()

I will show you User Page for example, other Pages are similar to this Page.

components/BoardUser.js

import React, { useState, useEffect } from "react";

import UserService from "../services/user.service";

const BoardUser = () => {
  const [content, setContent] = useState("");

  useEffect(() => {
    UserService.getUserBoard().then(
      (response) => {
        setContent(response.data);
      },
      (error) => {
        const _content =
          (error.response &&
            error.response.data &&
            error.response.data.message) ||
          error.message ||
          error.toString();

        setContent(_content);
      }
    );
  }, []);

  return (
    <div className="container">
      <header className="jumbotron">
        <h3>{content}</h3>
      </header>
    </div>
  );
};

export default BoardUser;

You can simplify import statement with:
Absolute Import in React

Logout when Token is expired

There are two ways to handle JWT Token expiration.
For more details, please visit:
Handle JWT Token expiration in React with Hooks

Add Navbar and define Routes

Now we add a navigation bar in App component. This is the root container for our application.
The navbar dynamically changes by login status and current User’s roles.

Home: always
Login & Sign Up: if user hasn’t signed in yet
User: AuthService.getCurrentUser() returns a value
Board Moderator: roles includes ROLE_MODERATOR
Board Admin: roles includes ROLE_ADMIN

App.js

import React, { useState, useEffect } from "react";
import { Routes, Route, Link } from "react-router-dom";
import "bootstrap/dist/css/bootstrap.min.css";
import "./App.css";

import AuthService from "./services/auth.service";

import Login from "./components/Login";
import Register from "./components/Register";
import Home from "./components/Home";
import Profile from "./components/Profile";
import BoardUser from "./components/BoardUser";
import BoardModerator from "./components/BoardModerator";
import BoardAdmin from "./components/BoardAdmin";

// import AuthVerify from "./common/AuthVerify";
import EventBus from "./common/EventBus";

const App = () => {
  const [showModeratorBoard, setShowModeratorBoard] = useState(false);
  const [showAdminBoard, setShowAdminBoard] = useState(false);
  const [currentUser, setCurrentUser] = useState(undefined);

  useEffect(() => {
    const user = AuthService.getCurrentUser();

    if (user) {
      setCurrentUser(user);
      setShowModeratorBoard(user.roles.includes("ROLE_MODERATOR"));
      setShowAdminBoard(user.roles.includes("ROLE_ADMIN"));
    }

    EventBus.on("logout", () => {
      logOut();
    });

    return () => {
      EventBus.remove("logout");
    };
  }, []);

  const logOut = () => {
    AuthService.logout();
    setShowModeratorBoard(false);
    setShowAdminBoard(false);
    setCurrentUser(undefined);
  };

  return (
    <div>
      <nav className="navbar navbar-expand navbar-dark bg-dark">
        <Link to={"/"} className="navbar-brand">
          bezKoder
        </Link>
        <div className="navbar-nav mr-auto">
          <li className="nav-item">
            <Link to={"/home"} className="nav-link">
              Home
            </Link>
          </li>

          {showModeratorBoard && (
            <li className="nav-item">
              <Link to={"/mod"} className="nav-link">
                Moderator Board
              </Link>
            </li>
          )}

          {showAdminBoard && (
            <li className="nav-item">
              <Link to={"/admin"} className="nav-link">
                Admin Board
              </Link>
            </li>
          )}

          {currentUser && (
            <li className="nav-item">
              <Link to={"/user"} className="nav-link">
                User
              </Link>
            </li>
          )}
        </div>

        {currentUser ? (
          <div className="navbar-nav ml-auto">
            <li className="nav-item">
              <Link to={"/profile"} className="nav-link">
                {currentUser.username}
              </Link>
            </li>
            <li className="nav-item">
              <a href="/login" className="nav-link" onClick={logOut}>
                LogOut
              </a>
            </li>
          </div>
        ) : (
          <div className="navbar-nav ml-auto">
            <li className="nav-item">
              <Link to={"/login"} className="nav-link">
                Login
              </Link>
            </li>

            <li className="nav-item">
              <Link to={"/register"} className="nav-link">
                Sign Up
              </Link>
            </li>
          </div>
        )}
      </nav>

      <div className="container mt-3">
        <Routes>
          <Route exact path={"/"} element={<Home />} />
          <Route exact path={"/home"} element={<Home />} />
          <Route exact path="/login" element={<Login />} />
          <Route exact path="/register" element={<Register />} />
          <Route exact path="/profile" element={<Profile />} />
          <Route path="/user" element={<BoardUser />} />
          <Route path="/mod" element={<BoardModerator />} />
          <Route path="/admin" element={<BoardAdmin />} />
        </Routes>
      </div>

      {/* <AuthVerify logOut={logOut}/> */}
    </div>
  );
};

export default App;

Add CSS style for React Pages

Open src/App.css and write some CSS code as following:

label {
  display: block;
  margin-top: 10px;
}

.card-container.card {
  max-width: 350px !important;
  padding: 40px 40px;
}

.card {
  background-color: #f7f7f7;
  padding: 20px 25px 30px;
  margin: 0 auto 25px;
  margin-top: 50px;
  -moz-border-radius: 2px;
  -webkit-border-radius: 2px;
  border-radius: 2px;
  -moz-box-shadow: 0px 2px 2px rgba(0, 0, 0, 0.3);
  -webkit-box-shadow: 0px 2px 2px rgba(0, 0, 0, 0.3);
  box-shadow: 0px 2px 2px rgba(0, 0, 0, 0.3);
}

.profile-img-card {
  width: 96px;
  height: 96px;
  margin: 0 auto 10px;
  display: block;
  -moz-border-radius: 50%;
  -webkit-border-radius: 50%;
  border-radius: 50%;
}

Run the Project

You need to run one of following Rest API servers first:

Then run this React Auth Application with command:
npm run start
Or: yarn start

Conclusion

Congratulation!

Today we’ve done so many interesting things. I hope you understand the overall layers of our React Login and Registraion App (without Redux) using Hooks, HttpOnly Cookie, LocalStorage, React Router, Axios, Bootstrap. Now you can apply it in your project at ease.

Don’t forget to read this tutorial:
Handle JWT Token expiration in React with Hooks

Or you need React Redux for this example:
React Redux Toolkit Authentication & Authorization example

Or add refresh token:
React Refresh Token with JWT and Axios Interceptors

Happy learning, see you again!

Source Code

You can find the complete source code for this tutorial on Github.

Typescript version:
React Typescript Authentication example with Hooks

Using Redux:
React Redux Toolkit Authentication & Authorization example

One thought to “React.js Login & Registration example – JWT & HttpOnly Cookie”

Tools
